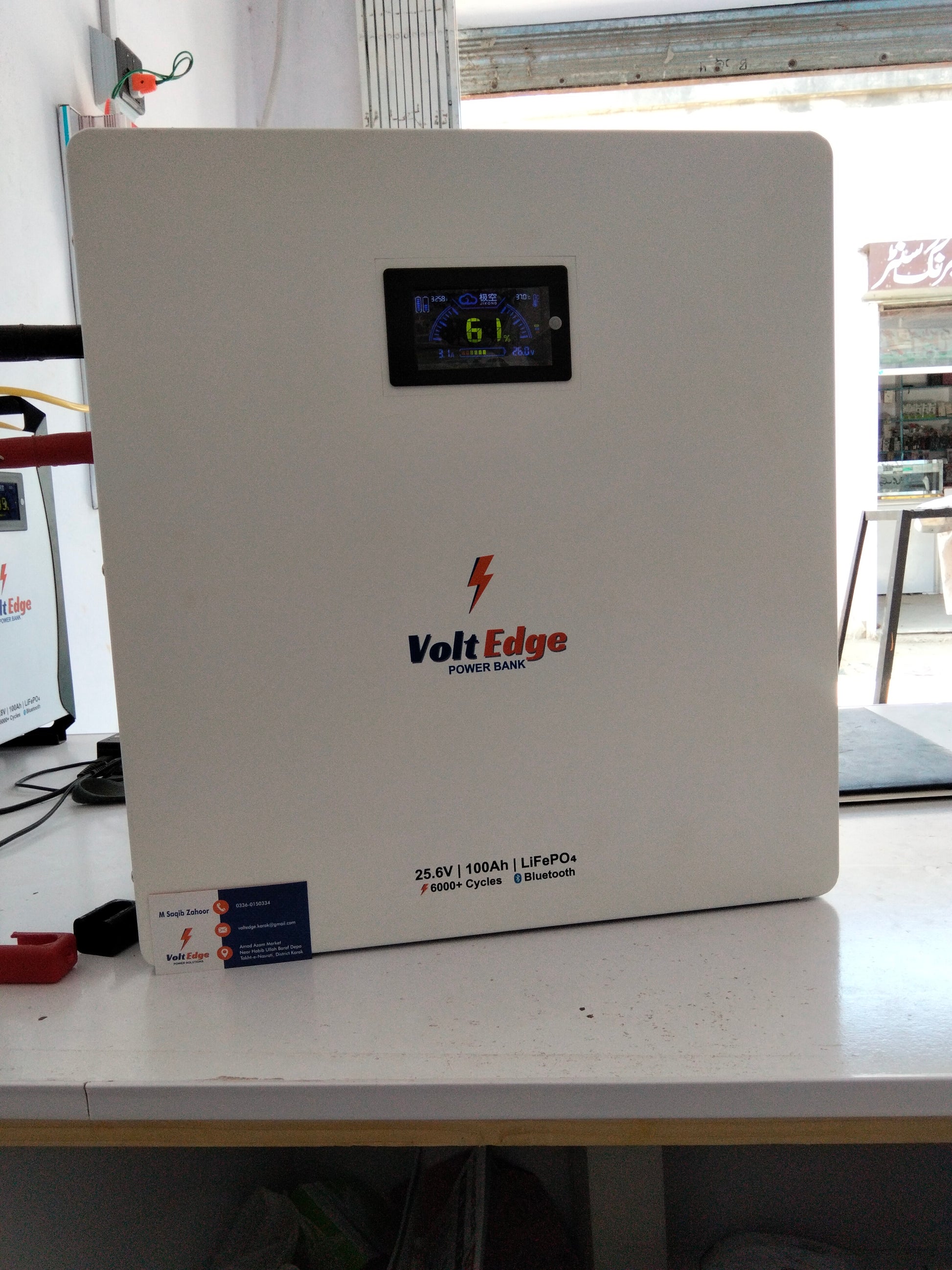

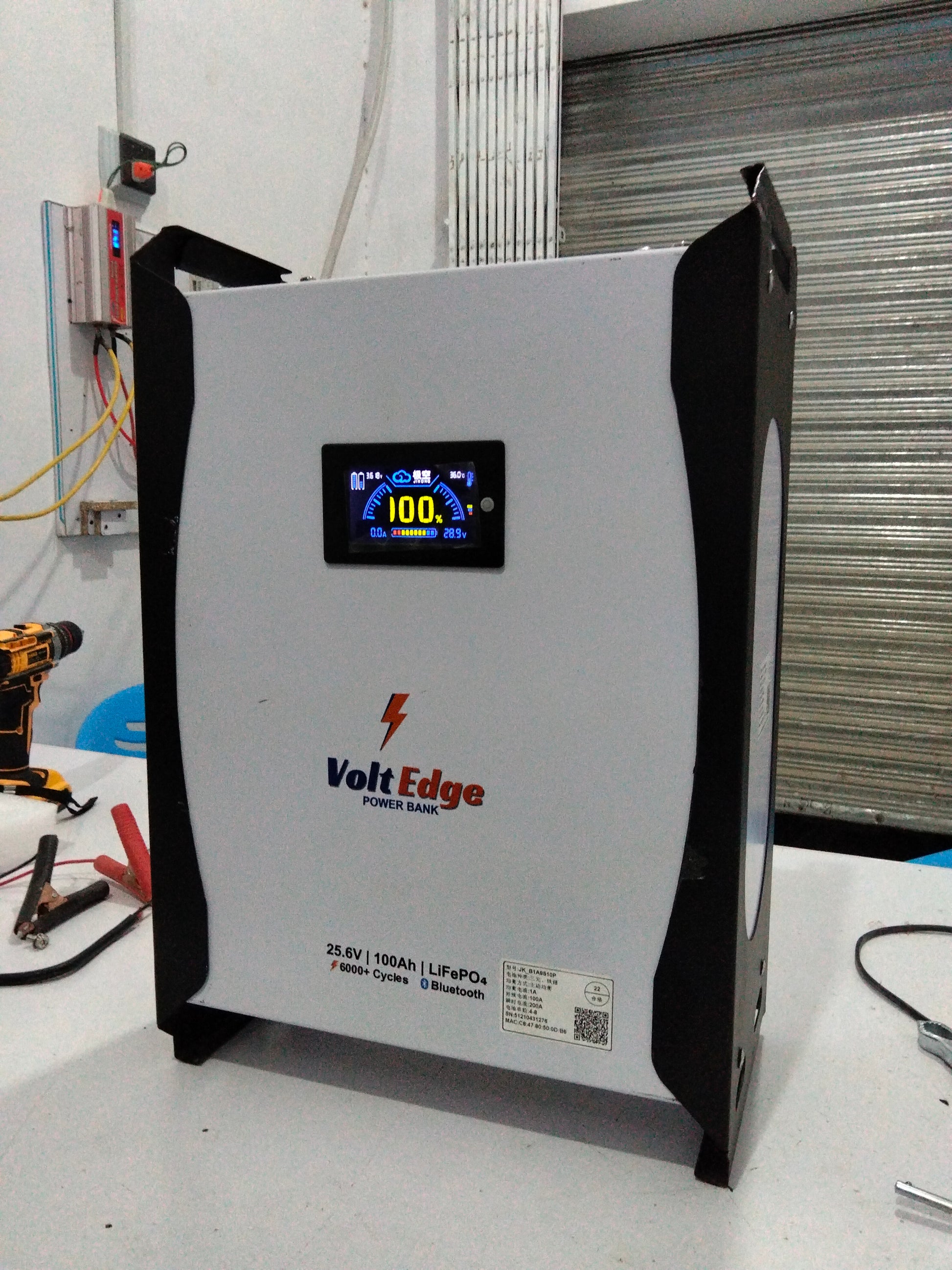

VoltEdge 25.6V 100Ah Lithium Power Bank with 3.2 inch screen display (5 Years Warranty)
VoltEdge 25.6V 100Ah Lithium Power Bank with 3.2 inch screen display (5 Years Warranty)
Couldn't load pickup availability
Power your home appliances, heavy inverter loads, and essential equipment seamlessly with the VoltEdge 25.6V 100Ah Lithium Power Bank. Engineered for higher efficiency, durability, and maximum safety, this custom-built 24V power pack combines premium Grade A Ganfeng LiFePO4 cells (8S configuration) with the industry-leading JK Smart BMS featuring 1A Active Balancing.
Whether you need a heavy-duty backup for 24V solar inverters, domestic appliances, or continuous power during outages, VoltEdge delivers long-lasting power you can trust.
Key Features & Highlights
-
Grade A Ganfeng LiFePO4 Cells (8S): Built with high-density Ganfeng prismatic cells configured in an 8S setup, offering low internal resistance 0.4m, high thermal safety, and an extended lifespan of 6,000+ deep cycles.
-
Smart JK BMS with 1A Active Balancer: Includes a heavy-duty 100A JK Smart BMS that actively balances cells continuously with a high 1A balancing current—preventing cell degradation and extending battery life significantly.
-
Bluetooth Smart Monitoring: Connect your smartphone via the JK BMS app to monitor real-time cell voltages, state of charge (SOC), temperature, and power usage in real time.
-
Built-in Safety Protections: Complete protection against over-charge, over-discharge, over-current, short circuit, and high/low temperatures.
-
5 Years Warranty: Comes with a full 5-year official warranty for complete peace of mind.
Technical Specifications
| Feature | Specification |
| Model Name | VoltEdge Power Bank 25.6V 100Ah |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah-2560Wh |
| Configuration | 8S (8 times 3.2V Ganfeng Prismatic Cells) |
| BMS Model | JK Smart BMS (100A Continuous Charge/Discharge) |
| Active Balancing | 1A Continuous Active Balancing |
| Charging Cut-off Voltage |
29.2V |
| Discharge Cut-off Voltage | 20.0V |
| Max Continuous Current | 100A |
| Max Continuous Power | 2560Wh/2.56Kwh |
| Cycle Life | 6,000 Cycles @ 80% DoD |
| Connectivity | Bluetooth Smart App |
| Warranty | 5 Years |
