JK Smart BMS (Model: JK-B1A8S10P) 100A BMS with 1A Active Balancer

Technical Specifications:

Brand / Manufacturer: JK (Jikong / 极空)
Model Number: JK-B1A8S10P
Cell Series Support: 4S to 8S (Suitable for 12V / 24V setups)
Balancing Type: Active Balancing (Active Equalization)
Balance Current:1A
Continuous Charge/Discharge Current: 100A
Peak / Instantaneous Current: 200A
Connectivity: Built-in Bluetooth (JK Mobile App Control)
Main Terminals: Heavy-duty B- (Battery Negative) & P- (Load/Charge Negative)

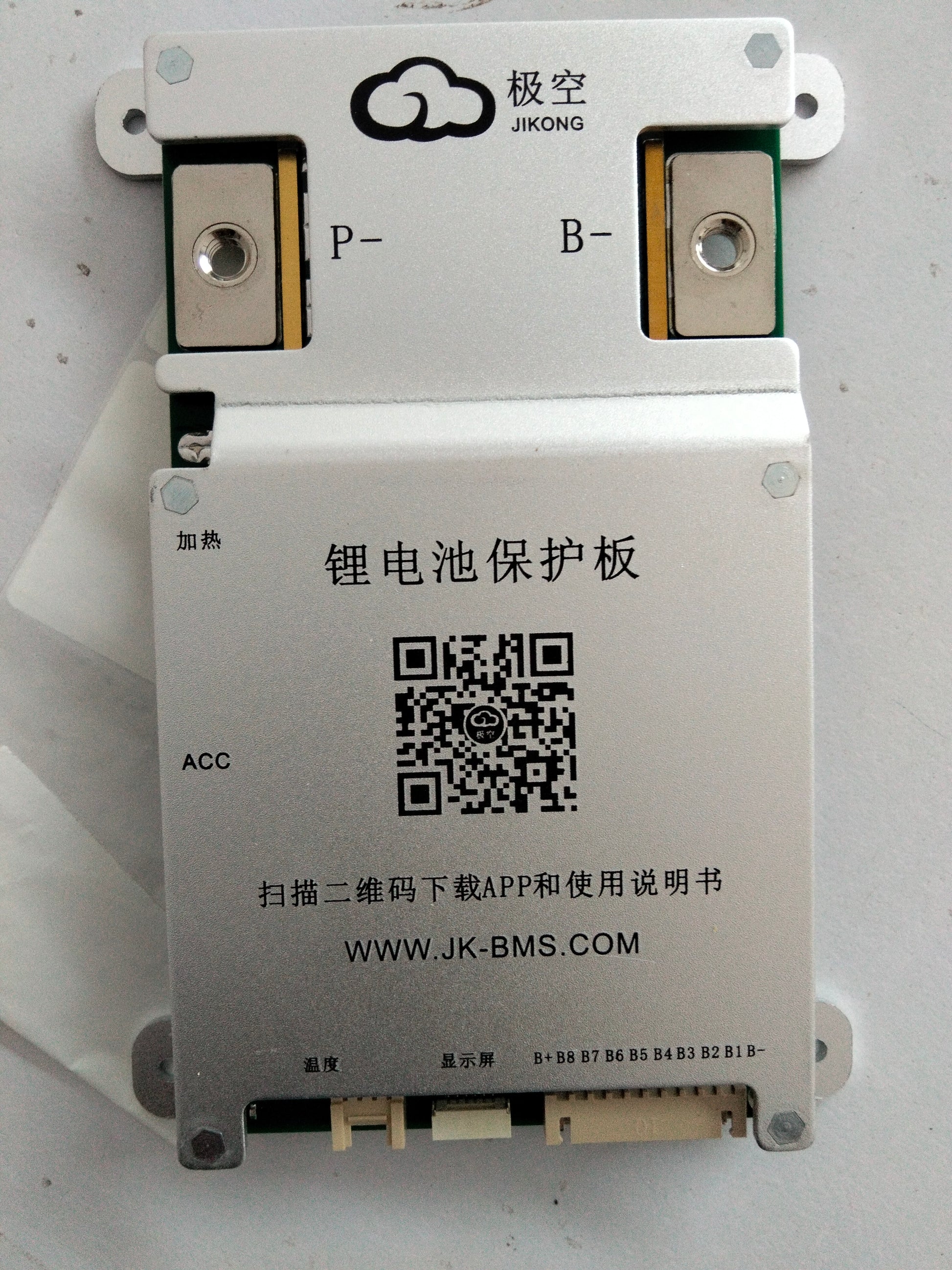

Interface & Board Features:
 * Display Port (显示屏): External LCD screen connect karne ke liye.
 * Temperature Sensor Port (温度): Dual NTC temperature monitoring.
 * Heating Port (加热): Dedicated heating film/pad control interface.
 * ACC Port: Ignition/control switch integration.

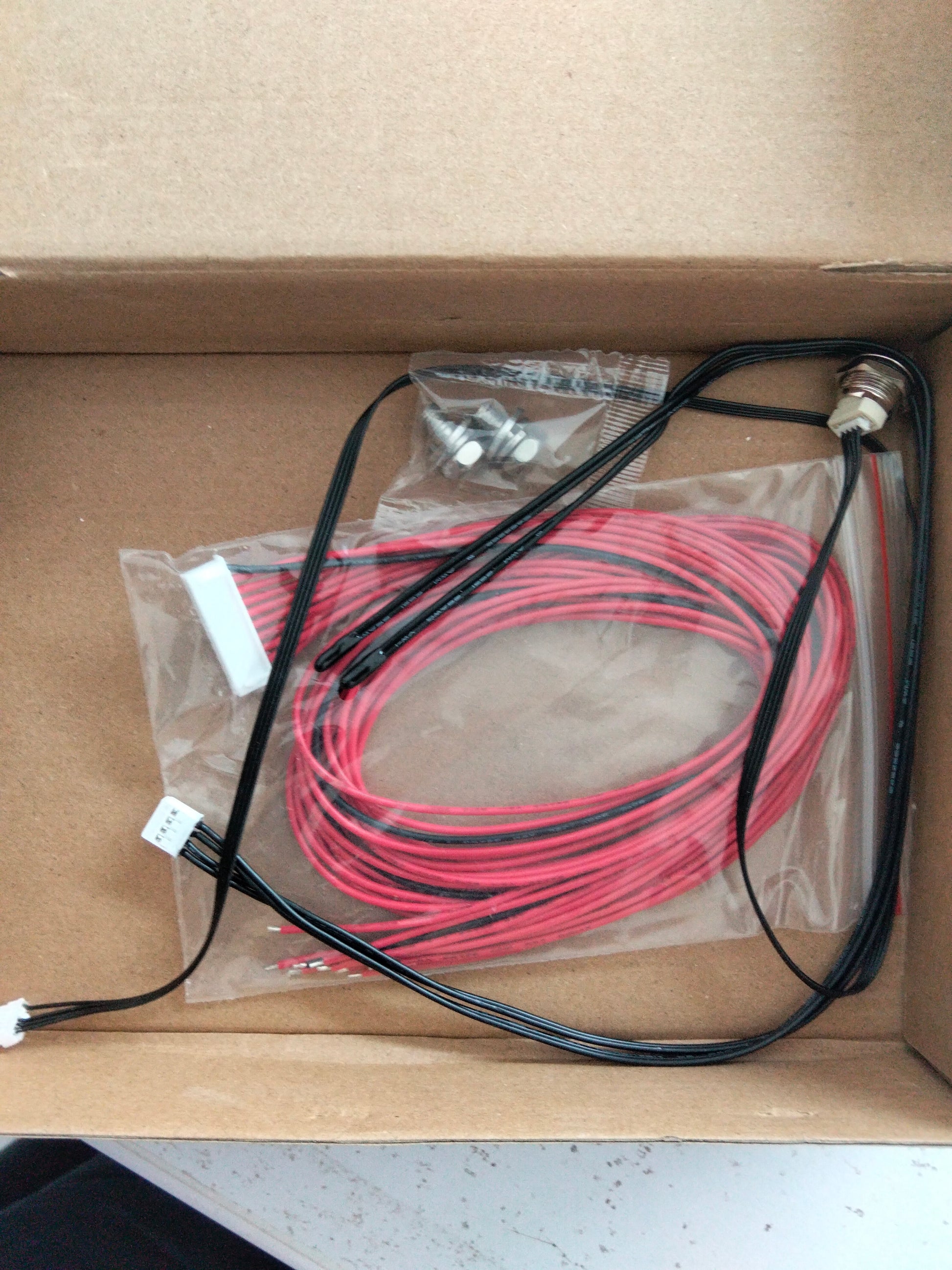

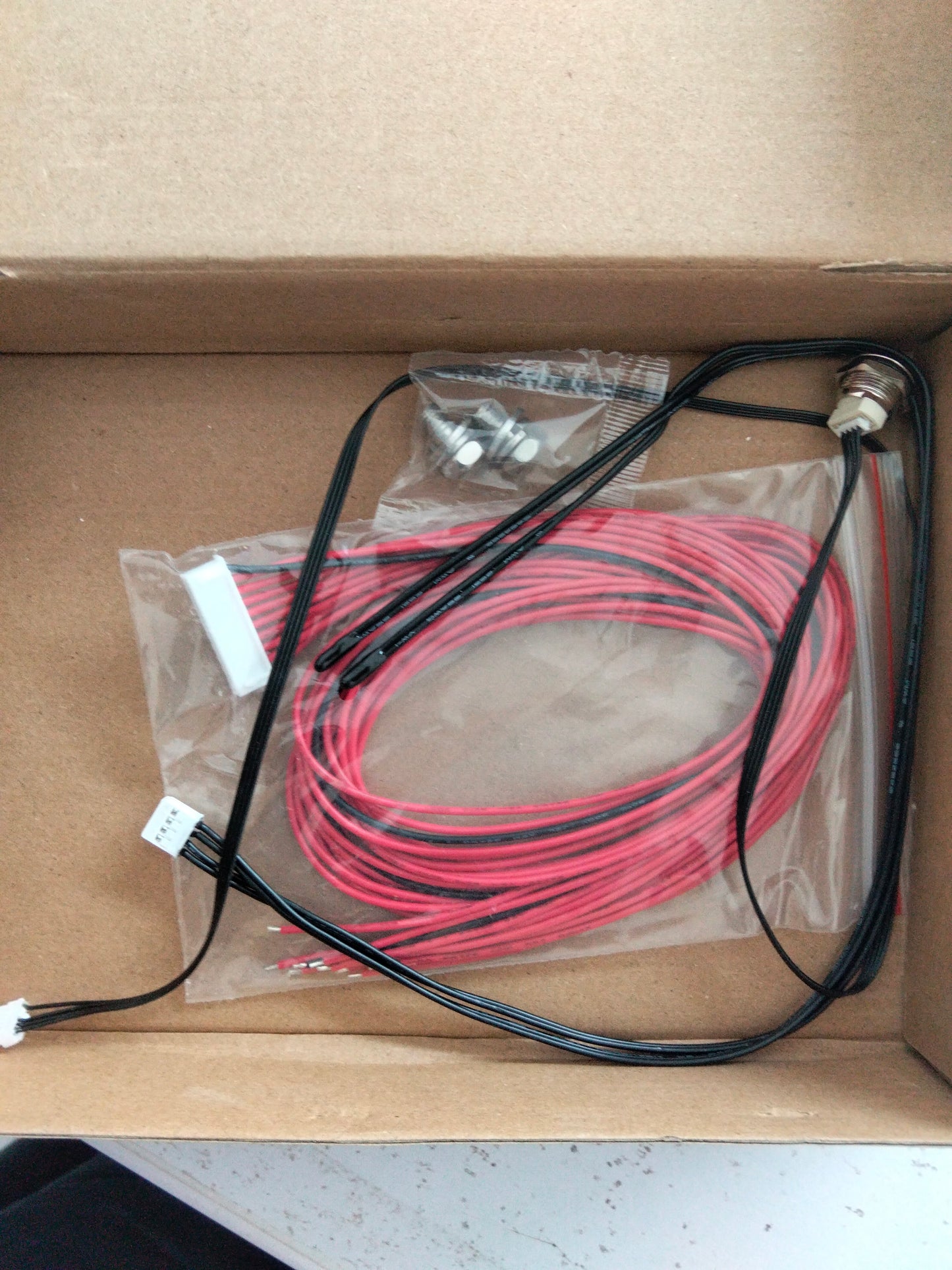

Package Contents (Box Items)
 * 1 × JK-B1A8S10P Smart Active BMS Board
 * 1 × Multi-pin Balance Wire Harness
 * 2 × NTC Temperature Sensor Cables
 * 1 × External Push Switch Button (LED Indicator ke sath)
 * Terminal Mounting Bolts & Washers
