Volt Edge Power Solutions

JK Smart BMS 3.2-Inch LCD Display Screen

JK Smart BMS 3.2-Inch LCD Display Screen

Rs.2,999.00
Rs.2,999.00
Sale Sold out

JK Smart BMS 3.2-Inch LCD Display Screen

Upgrade your lithium battery monitoring setup with the official JK Smart BMS 3.2-Inch Color LCD Screen. Designed for seamless plug-and-play integration with JK Smart BMS units, this display provides real-time, high-precision battery status visibility without needing to open your mobile app.

Perfect for custom LiFePO4 / Li-ion battery packs, home solar storage systems, and UPS backup power setups.

Key Features & Highlights

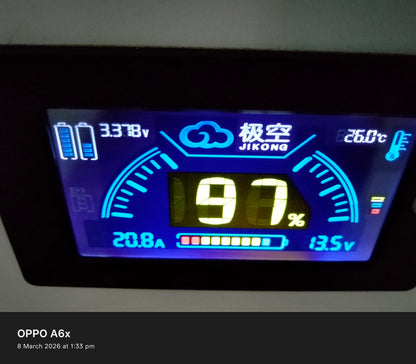

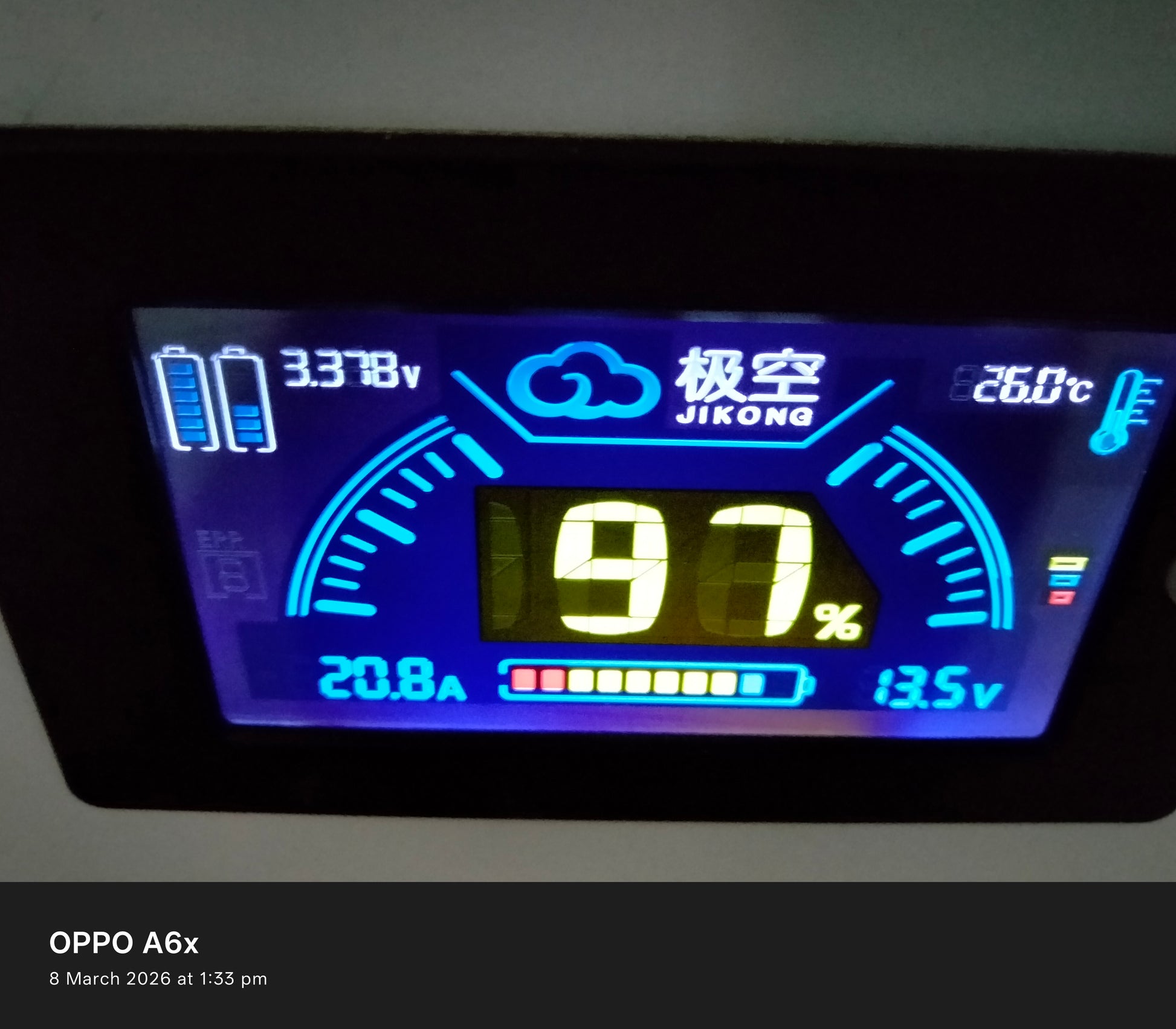

  • Real-Time Data Display: View total voltage, individual cell voltages, state-of-charge (SOC percentage), charge/discharge current, and temperature instantly.

  • Plug-and-Play Setup: Connects directly to the dedicated display port on your JK Smart BMS with the included wiring harness.

  • Touch / Key Control: Easy navigation to switch between display screens and view cell voltage balance status.

  • Low Power Consumption: Compact, energy-efficient display designed for continuous operation without draining your battery storage.

  • Clear & Vivid Interface: High-contrast 3.2-inch display for clear visibility even in low-light environment setups.

Technical Specifications

Feature / Parameter Specification
Product Type External LCD Display Screen
Display Size 3.2 Inches
Compatibility JK Smart BMS (Jikong BMS) Series
Interface Port Dedicated LCD Port (JK BMS)
Screen Type Color LCD / TFT Display
Display Parameters Total Voltage, Cell Voltages, Current, SOC (%), Temperature, Errors/Alerts
Operating Voltage Powered directly via BMS LCD port
Mounting Type Panel Mount / Enclosure Cutout

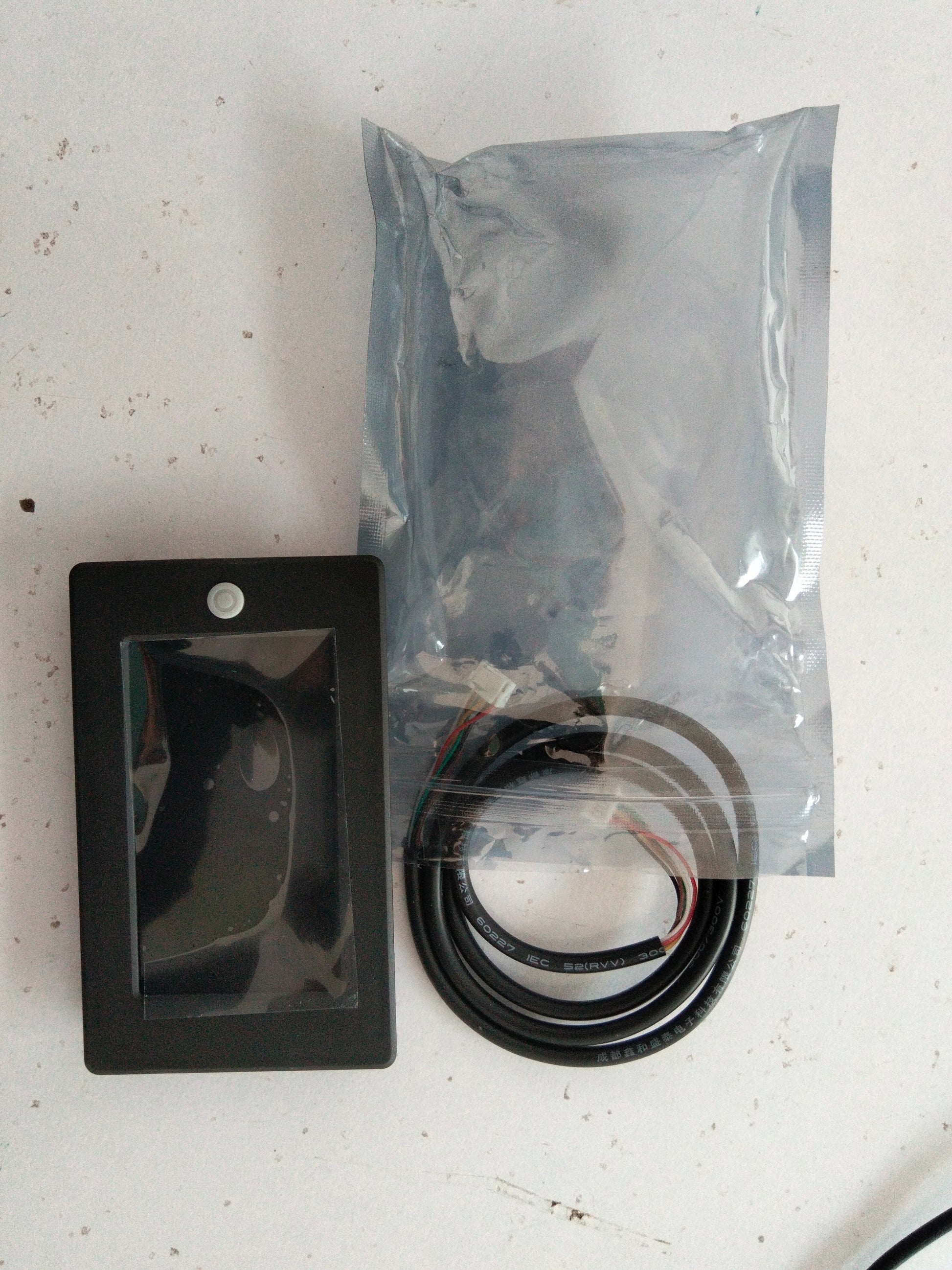

Package Includes

  • 1 times JK Smart BMS 3.2-Inch LCD Screen

  • 1 times Connecting Cable Wiring Harness
